tungsten carbide button

Brand Name : Lys

Model Number : Mine using carbide

Certification : ISO9001:2008

Place of Origin : China

MOQ : 10pcs

Price : 1USD PER PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : Within one month

Packaging Details : As per as customer's requirment

Material : Tungsten Carbide

Type : Drill bit

Machine Type : Drilling Tool, Drilling tool

Processing Type : Forging

Use : Well,Oil Drilling

Size : Customized

Grade : YG6C/YG8C/YG11C/YG15C/ZD15 etc

OEM Service : Yes

Contact Now

tungsten carbide button

Use 100% tungsten carbide raw material
ISO 9001-2008 certification
Wear resistant
High quality and best price

-The grades of tungsten carbide buttons

Grade	Density (g/cm³)	Hardness (HRA)	T·R·S (N/mm2)	Application
YG4C	15.0	89.5	1800	Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6	15.8	89.5	1700	Maily used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8	14.7	88.5	2300	Maily used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft,medium-hard formations.
YG8C	14.7	88.0	2300	Maily used as the buttons of small and mediumsized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG9C	14.5	87.0	2400	Maily used as the inserts and buttons for rotary percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG11C	14.4	86.5	2450	Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG13C	14.3	86.0	2500	Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15	14.0	86.5	2500	It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.
YG16	14.1-14.3	87.5	2400	It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits.
YG20	13.4-13.7	85.0	2254	Mainly for the stamping dies used in the conditions of heavy impact load and large strees.

-Features of tungsten carbide drill bit buttons

1.Using over 99.95% high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.

2.Taking isostatic pressing machine, our drill bit button has a uniform density and do not break easily.
3.Sintered by overvoltage sintering fuenance, the abrasive resistancing of carbide button can be increased by 24%.
4.Grinted by centerless grinder, it has precis measurement.Be welted tightly, it do not drop from drill.

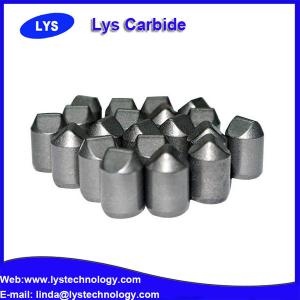

tungsten carbide button Images
